OS
|
windows 10
home/pro/iot
|
|
|
CPU
|
intel
cherry trail Z8350
|
|
|
RAM/ROM
|
4GB/64GB
|
|
|
LCD
|
10.1
inch1920*1080；
|
500
nits sunshine readable
|
|
Touch screen
|
10
point touch
support tylus
support thin glove touch
|
|
|
Camera
|
2M/5M
|
|
|
Power
and battery
|
battery
total capacity 10500mAh 8400+2100
play video 6 hours, working 8-10 hours charging 6 hours.
Stand by 72 hours
|
3.7V
|
|
3.5*1.35mm, 5V 3A DC in put
|
Magnetic
charger
|
|
WWAN
|
4G
LTE, 3G WCDMA, GSM
|
4G
Fre:
FDD: B1,B2, B3,B5, B7, B8, B12， B20
TDD: B38,B39,B40,B41
B34
WCDMA:B1, B8
TD-SCDMA: B34, B39
GSM/GPRS/EDGE
|
|
GPS
|
baidou,GPS,
glonass
|
MT6625L
|
|
wifi
|
802.11a
b c, g,n wireless internet Wireless AP
( Mobile AP )2.4G, 5G
|
intel
3165
|
|
BLUETOOTH
|
4.0
version
|
|
|
NFC
|
13.56
MHz, distance 5cm or above
|
|
|
SPEAKER
|
1.5
watt
|
|
|
Sensor
|
1.
light sensor
2. acceleration/gravity
|
|
|
size
|
275*178*18mm
|
|
Multi-media
(Hardware decoding)
|
Viewer
|
BMP,
JPG, GIF, PNG
|
|
Video Format
|
MEPG
1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
|
|
Audio Format
|
MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS
(need license)
|
|
language 语言
|
multi
language
|
|

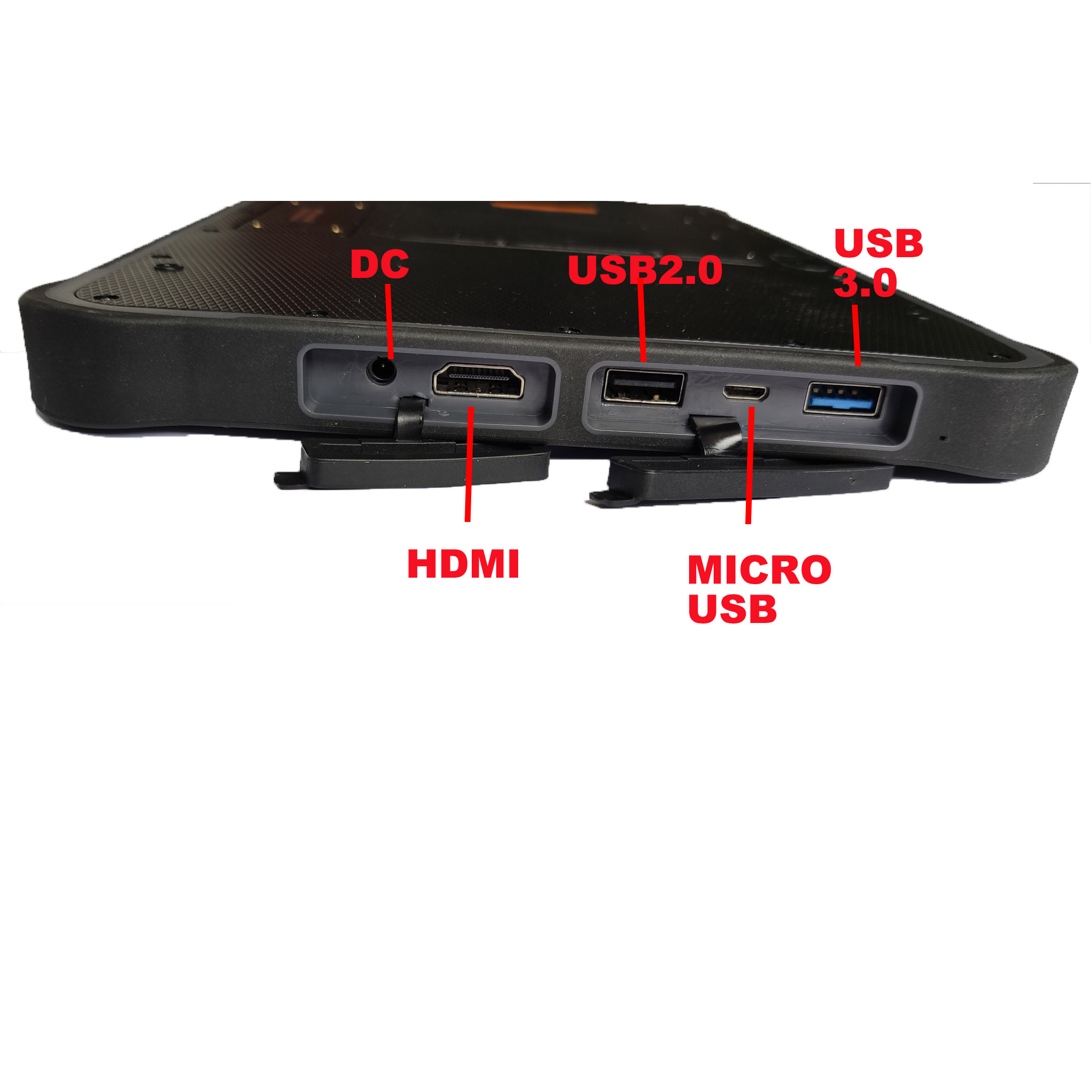

interface
in/out port
|
1.USB*2
2. Micro USB*1
3. RJ45*1
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. mini HDMI
9.RS232*1
|
|
|

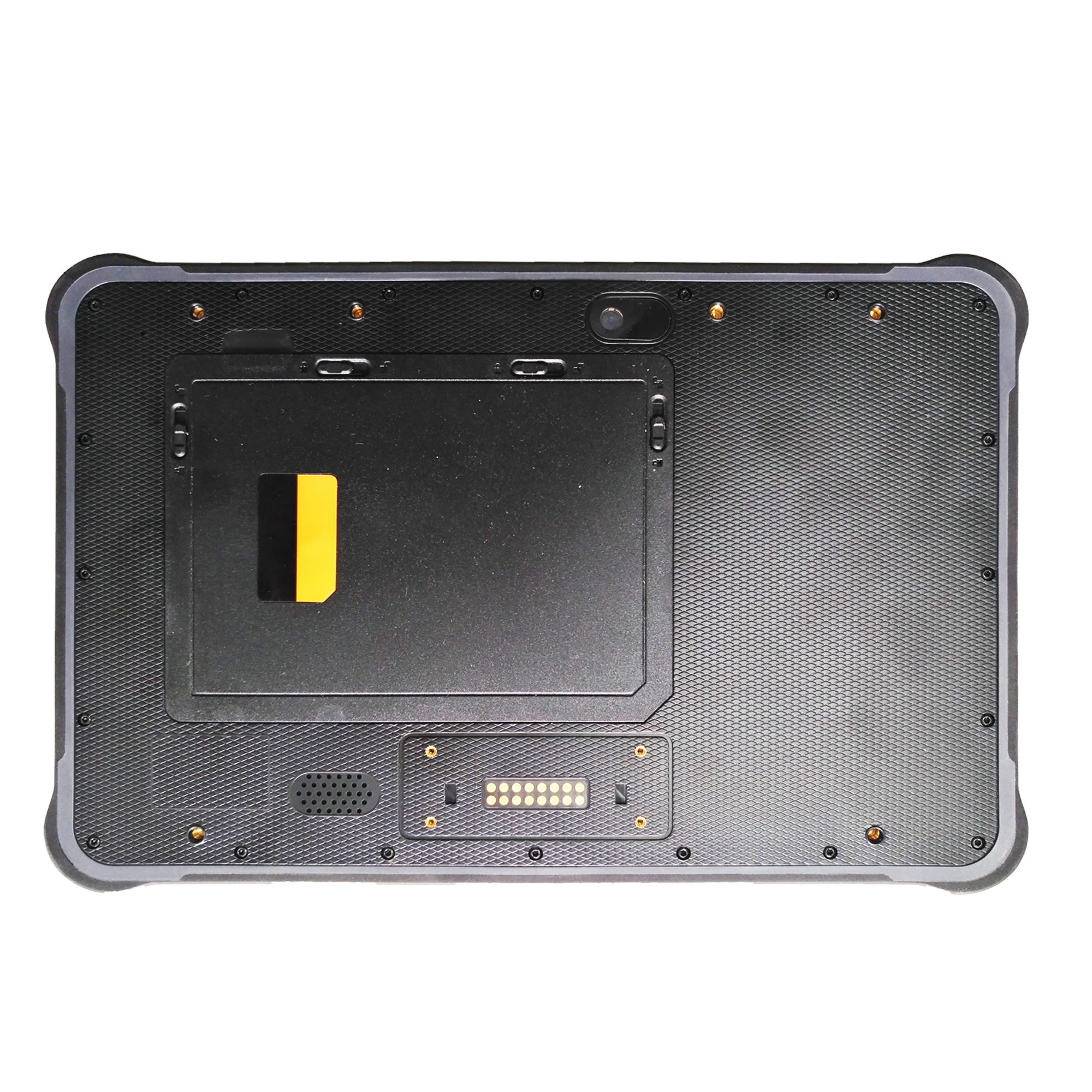

Pogopin
definition
|
1.16pin
back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
VESA hole 75*75mm or 90*90mm
|
|
